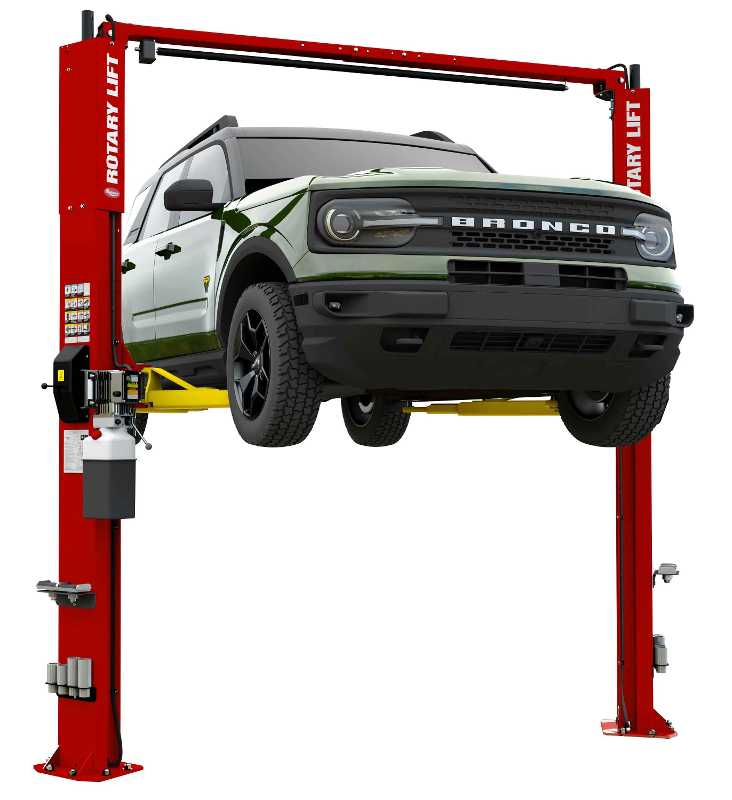

SPOA10-AV
- 10,000 lbs. Capcity
- Two-post asymmetric lift
Features
The SPOA10-AV is a 10,000 lbs. capacity two-post asymmetric lift.
- Easy spotting and positioning
- Lowest adapter height in the industry
- Highest capacity low-profile lift
- Ultimate lifting versatility
- Reach small points on EV pickups
- Includes various adapter extensions
- Equipped with ShockWave™
- Features "Double S" Column Design
- Offers true asymmetric lifting
Specifications
- Capacity 10,000 lbs.
- Max Rise (standard): 81.5"
- Max Rise (Shockwave): 84.5"
- Overall Height: 11' 11.5" (with Shockwave Power: 12' 5.5")
- Overall Width: 11' 5.5"
- Drive-Thru Clearance: 95.25"
- Inside Columns: 107.25"
- Front Arm Min/Max: 18.5" / 41"
- Rear Arm Min/Max: 27.625" / 58.25"
- Min Adapter Height: 3 3/8"
- Speed of Rise: Standard Power: 45 seconds (standard power) / 25 seconds (Shockwave power)
- Speed of Decent: 40 seconds (standard power) / 19 seconds (Shockwave power)
- Ceiling height required: 12' / 12' 6" with Shockwave power
- Min Bay Size: 12' x 24'

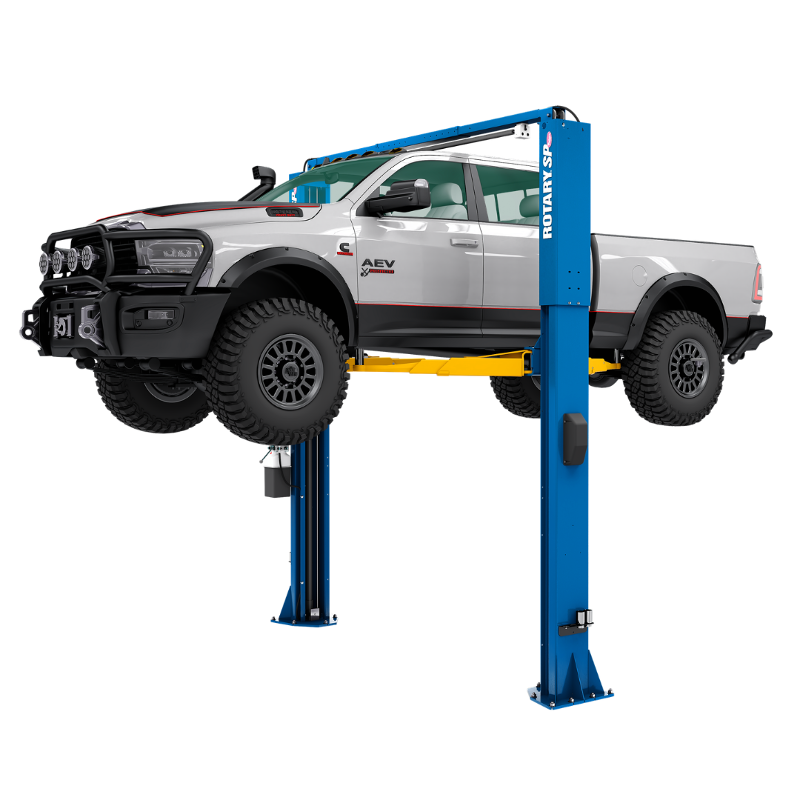

SPOA12-AV
- 12,000 lbs. Capacity
- Two-post symmetric lift
Features
The SPOA12-AV is a 12,000 lbs. capacity two-post symmetric lift.
- Simply lift anything
- Fastest 12,000 capacity lift
- Ultimate customization
- Offers true symmetrical lifting
- Shockwave available
- Features "Double S" Column Design
Specifications
- Capacity 12,000 lbs.
- Rise: 75.75" / 78.125"
- Overall Height: 13' 8" (standard) / 11' 8" (low)
- Base Required Ceiling Height: 102.375"
- Drive-Thru: 8' 6.375"
- Inside Columns: 114.875"
- Arm Reach Min/Max: 27.375" / 59.125"
- Min. Adapter Height: 4.625"
- Min. Bay Size: 12' x 26'
- Min. Ceiling Height: 13' 9" (standard) / 11' 10.75" (standard)
- Motor / Voltage 1Ø: 2 HP / 208-230V
- Time of Full Rise: 60 seconds

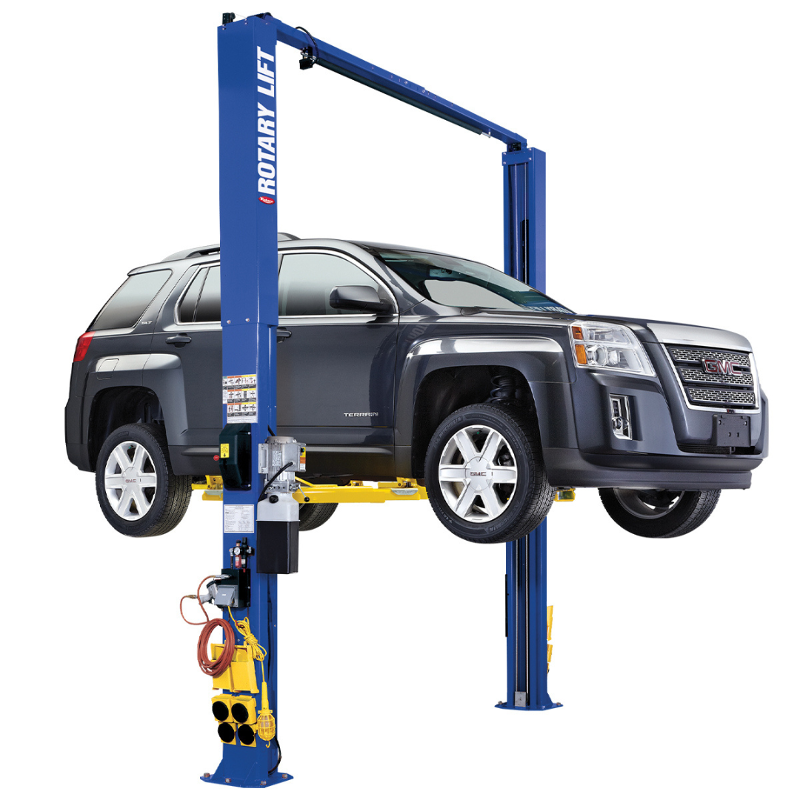

SPO10
- 10,000 lbs. Capacity
- Two-post symmetric lift
Features
The SPO10 is a 10,000 lbs. capacity two-post symmetric lift
- Strong Double-S Columns
- Optimal Reach Three-Stage Arms
- Fits in standard 12'-Wide Bay
- Multiple options for extended heights
- Widest lift option
- ShockWave™ accelerator option
- Equipped with ShockWave™
- Features "Double S" Column Design
- Offers true symmetrical lifting
Specifications (Based on SPO10-FA)
- Capacity: 10,000 lbs
- Rise: 78.25" (Varies by model)
- Base SPO10 overall height: 11' 8.5"
- Base SPO10 required ceiling height: 12' (other models require 12' 4")
- Overall Width: 11' 5.5"
- Drive-Thru Width: 8' 6.5"
- Front Arm Min/Max: 31" - 54" (Varies by model)
- Rear Arm Min/Max: 31" - 54" (Varies by model)
- Min. Adapter Height: 4.75" (Varies by model)
- Motor: 2 HP (Varies by model)
- Voltage: 208-230v (Varies by model)
- Time of Full Rise/Decent: 45 secs./40 secs. (Varies by model)
- Min. Bay Size: 12' x 24'

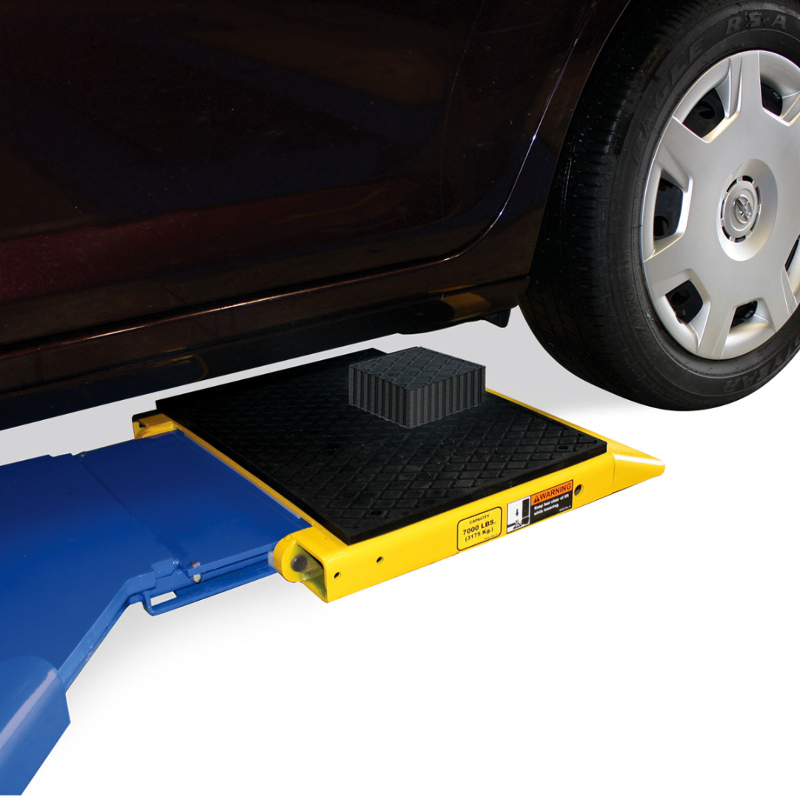

SPOA7-MP
- 7,000 lbs. Capacity
- Two-post asymmetric pad lift
Features
The SPOA7-MP is a 7,000 lbs. capacity two-post asymmetric pad lift.
- Adjusted drive-over pads
- Ideal for quick-lube bay
- Fits unibody vehicles
- Rubber spacer blocks
Specifications
- Adapters: Moveable Pad
- Lifting Capacity: 7,000 lbs.
- Lifting Capacity (per platform) 3,500 lbs.
- Rise: 74" - 88"
- Width Overall: 11' 5.375"
- Floor to Top of Overhead Standard: 11' 8.5"
- Floor to Top of Overhead EH1: 12' 8.5"
- Floor to Top of Overhead EH2: 13' 8.5"
- Cylinder at Full Rise Standard: 11' 10.75"
- Cylinder at Full Rise Extended Option: 12' 4.75"
- Width Between Columns: 107' .25"
- Floor to Overhead Switch: 11' 2.75"
- Drive Over Clearance 2.625"
- Drive-Thru Clearance: 79"
- Outside of Pad to Outside of Pad: 78.5"
- Inside of Pad to Inside of Pad: 37.125"
- Pad Length Overall Retracted: 70.8125"
- Pad Length Overall Extended: 86.8125"
- Minimum Distance Between Pads: 39.5625"
- Maximum Distance Between Pads: 55.5625"
- Motor Performance: 2 HP
- Voltage Single Phase: 208/230v
- Speed of Rise: 45 seconds
