---- Equipment, Lifts & Service ----

Four Post Lifts

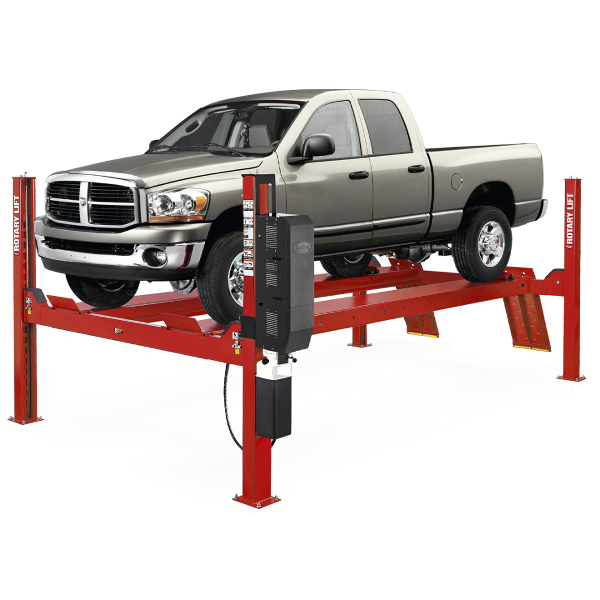

SM14
  • 14,000 lbs. Capacity
  • Four-post lift

The SM14 is a four-post, closed-front drive-on lift.

Features:

  • Self-leveling columns
  • Greater traction
  • Non-welded, single-piece runways

Specifications (Extended Length Version Available)

  • Capacity: 14,000 lbs.
  • Rise: 73.75"
  • Length Overall: 226"
  • Max. Wheelbase: 182"
  • Drive-Thru Width: 116.25"
  • Column Height: 90"
  • Width Between Runways 43" to 46"
  • Runway Width: 20"
  • Min. Bay Size: 15' x 23', or 28'
  • Motor / Voltage with SHOCKWAVE: 2 HP / 208 - 230V
  • Time of Full Rise with SHOCKWAVE: 65 seconds (actual times depend on vehicle weight)

    **Overall width and length is 10-1/2" longer with SHOCKWAVE unit mounted on column side or front.

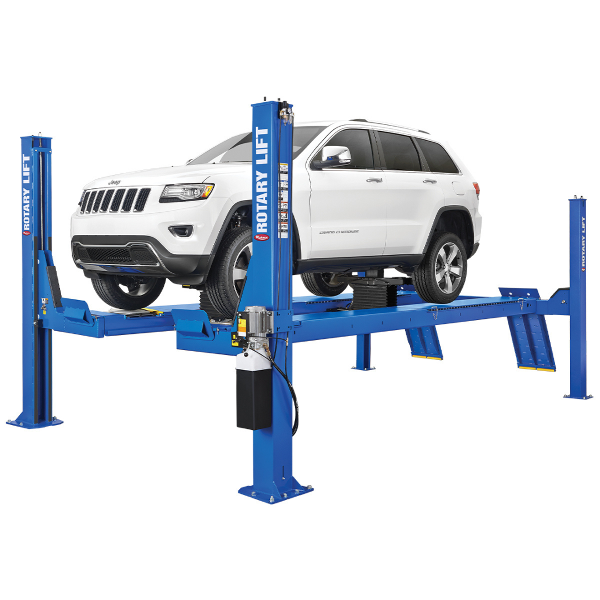

ARO14
  • 14,000 lbs. capacity
  • Four-post open-front alignment rack

The ARO14 is a four-post open-front alignment rack.

Features:

  • Open-front design
  • Industry-leading service
  • ShockWave™ Available
  • Single-piece runway
  • Stainless steel gauges
  • Dual-Function Sentinel Lock™
  • Open-front design
  • Compatible with all-new alignment technology

Specifications  (Extended Length Version Available)

  • Max Wheelbase: 182"
  • Max Two Wheel Align: 171.25"
  • Max Four Wheel Align: 164.75"
  • Min. Four Wheel Align: 89"
  • Rise: 78.75"
  • Length Overall: 21' 1"
  • Width Overall: 11' 8.5"
  • Inside of Columns: 116.25"
  • Between Front and Rear Columns: 194.75"
  • Height of Columns: 9' .6875"
  • Width of Runways: 20"
  • Height of Runways: 7"
  • Width Between Runways: 43"
  • Front of Runway to Center of Radius Gauge: Adj. 18" - 24"
  • Lifting Capacity: 14,000 lbs.
  • Motor: 2 HP
  • Voltage Single Phase: 208v - 230v
  • Time of Full Rise: 65 seconds
  • Min. bay size: 15' x 26'

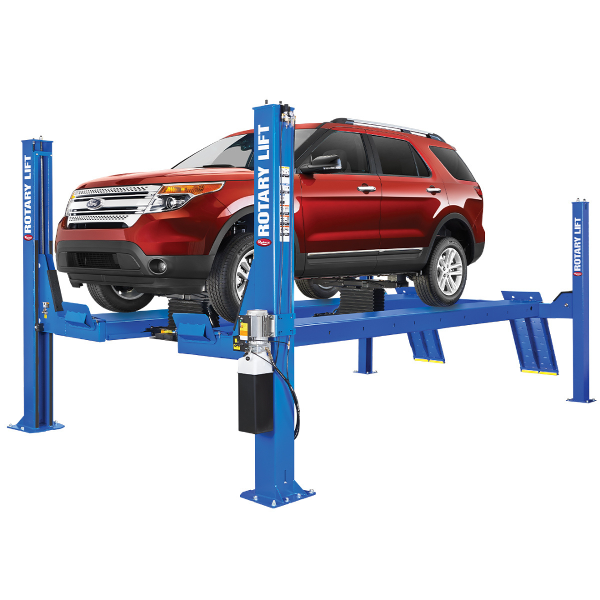

SMO14
  • 14,000 lbs. capacity
  • Four-post open-front lift

The SMO14 is a four-post open-front lift.

Features:

  • Open-front design
  • Non-welded, single-piece runways
  • Self-leveling columns
  • Greater traction

Specifications

  • Specification: SMO14-EL
  • Max Wheelbase: 215"
  • Rise: 78.75"
  • Length Overall: 23' 10"
  • Width Overall: 11' 8.5"
  • Inside of Columns: 116.25"
  • Between Columns: 227.75"
  • Height of Columns: 9' 11/16"
  • Width of Runways: 20"
  • Height of Columns: 7"
  • Width Between Runways (min.): 43"
  • Width Between Runways (max.): 43"
  • Lifting Capacity: 14,000 lbs.
  • Motor: 2 HP
  • Voltage Single Phase: 208v-230v
  • Time of Full Rise: 65 seconds
  • Min. Bay Size: 15' x 28'

Accessories
