RPG- Rockford Professional Grade Tools

RPG logo

Air Tools

Impacts- 1/2″, 3/4″, 1″ RPG impact wrenches

Buffers- High Speed and Low Speed RPG buffers

Maintenance– How to care for you tools

• 6" extended anvil
• 3-position forward and
reverse
• High efficiency 6-vane
motor
• Swoop-back side handle
for maneuverability and
balance
• Pinless clutch mechanism
• WORKING TORQUE RANGE:
1,800-2,000 ft./lb
• FREE SPEED: 5,000 RPM
• MAX TORQUE: 2,000 ft./lbs

RPG 1" & #5 SPLINE DRIVE SUPER DUTY IMPACT WRENCH

• 6" extended anvil
• Steel end plates
• WORKING TORQUE RANGE:
1,600-1,800 ft./lb.
• FREE SPEED: 4,500 RPM
• MAX TORQUE: 1,800 ft./lb.
• Replacement parts available

RPG 1" DRIVE & #5 SPLINE SUPER DUTY AIR IMPACT WRENCH

• 6" extended anvil
• 3-position power setting
• Rubber- coated side handle
for added comfort
• Powered by the twin
hammer clutch
• FREE SPEED: 5,000 RPM
• MAX TORQUE: 2,000 ft./lb.

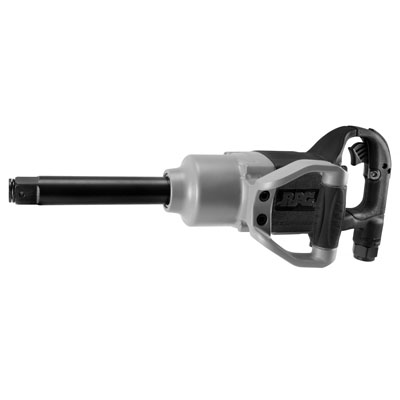

RPG 1" DRIVE MINI PLUS AIR IMPACT WRENCH

• 2" extended anvil
• FREE SPEED: 8000 RPM
• MAX TORQUE: 600 ft./lb.
• Proven design and the most popular
configuration in the tire service industry
• Powered by the durable and high performing
twin hammer mechanism
• Handle exhaust

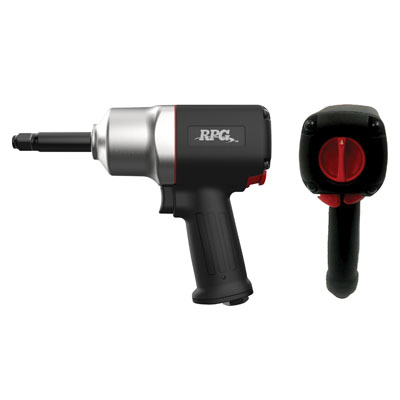

RPG 1/2” DRIVE SUPER DUTY AIR IMPACT WRENCH

• FREE SPEED: 8000 RPM
• MAX TORQUE: 685 ft./lb.
• Convenient one-hand operated forward/reverse push button
• Four-setting torque adjustment switch
• Lightweight design
• Compact with a total length of only 7.2”
• Twin hammer mechanism provides smooth balance
• Feather trigger for precise speed control
• Energy efficient motor for maximum performance & long life
• Swivel air inlet prevents hose from twisting

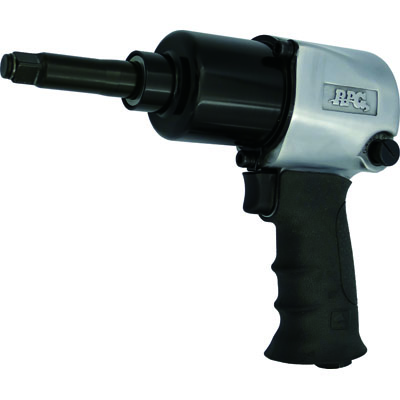

RPG 1/2” DRIVE COMPOSITE IMPACT WRENCH WITH EXTENDED ANVIL

• 2" extended anvil
• FREE SPEED: 8,000 RPM
• MAXIMUM TORQUE: 600 ft./lb.
• Powered by the durable and high performing twin
hammer mechanism
• Proven design and the most popular configuration
in the tire service industry
• Handle exhaust
• Rubber grip

RPG 1" DRIVE SUPER DUTY AIR IMPACT WRENCH W/ RUBBER GRIP

• Short anvil with handle exhuast
• 6-position power setting
• FREE SPEED: 5,500 RPM
• MAXIMUM TORQUE: 1,100 ft./lb.
The most powerful 3/4" drive classic wrench
• Suitable for tire or engine work on truck, bus or
farm machinery

RPG 3/4" DRIVE IMPACT WRENCH

Ascot #	MFG #	Drive	Free Speed	Torque Ft/LBS	Pressure PSI	Air con. avg (CFM)	Air Inlet NPT	Hose size	Length	Weight LBS
153-12131	A2131-COMP	1/2”	8000	700	90	4	1/4”	3/8”	9.6”	5.01
153-23120	A2312	1/2”	8000	600	90	4	1/4″	3/8″	8-1/8″	5.6
153-23121	SS-A2312	1/2”	8000	600	90	4	1/4″	3/8″	6.1″	5.95
153-33120	A2312G	1/2”	8000	600	90	4	1/4”	3/8”	8-1/8”	5.6
153-33121	SS-A2312G	1/2”	8000	600	90	4	1/4”	3/8”	6.1”	5.95
155-12856	A2856	1″	5000	2000	–	12	1/2″	3/4″	20.5″	27.6
155-17786	A778-6	1″	4500	1800	90	8.4	1/2″	3/4″	20.3″	26.59
155-26464	A26464	1″	5000	1800	90	9	1/2″	3/4″	19.2″	17.86
156-12856	A2856SP	#5 Spline	5000	2000	–	12	1/2″	3/4″	20.5″	27.6
156-17786	A778SP-6	#5 Spline	4500	1800	90	8.4	1/2″	3/4″	20.3″	26.59
154-10261	A261	3/4″	5500	1100	–	9.5	3/8″	1/2″	8.2″	12.9

Impact wrenches

RPG impacts use the newest technology and trusted materials to create steel, composite and rubber wrapped housing. These materials make RPG heavy duty performers with the quality that lasts. Depending on your need, Rockford Professional Grade has the right option for you with some models having convenient one-hand operated forward/reverse push button with four-setting torque adjustment switch. RPG provides impacts from 1/2” to 1” square drive sizes and 1” spline options.

• Quick change chuck for holding buffing accessories
• Lock-off throttle
• FREE SPEED: 22,000 RPM
• APPLICATIONS: Tire patchwork, roughing areas
for recapping and cleaning tire moldings
• Includes overhose kit

RPG HIGH SPEED BUFFER KIT WITH QUICK CHANGE CHUCK

• Brass bushings provide performance and
durability in tough working conditions
• Includes whip hose and exhaust hose
• QC slip chuck for fast & easy change of
buffing wheel
• Lock off throttle to prevent accidental
start ups
• Rear exhaust directs air away from the
work area and has built-in regulator
• Ideal for patchwork, roughing
areas for recapping and cleaning
tire moldings

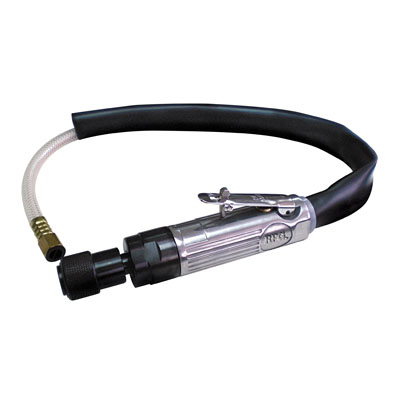

RPG LOW SPEED TIRE BUFFER WITH QUICK CHANGE SLIP CHUCK

• High torque motor to cut through stubborn
wheel weight adhesive, body pinstripes, etc.
• High RPM to prevent pad from bogging down
• Pad made of a tough
and long-lasting material
• Rubber-insulated motor housing
for hand comfort
• Lock-off trigger for added safety
• Includes eraser pad
• SPINDLE THREAD: 5/16"-24

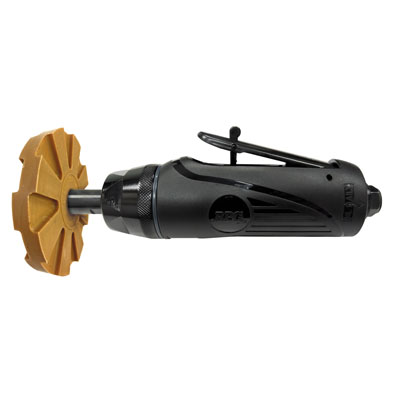

RPG WHEEL WEIGHT
ADHESIVE REMOVAL TOOL

• Adjustable speed regulator for precise control
• Lock-off throttle to prevent accidental start-up
• Rear exhaust directs air away from work area
• Durable gears for top performance and long life
• FREE SPEED: 22,000 RPM
• Adjustable handle that is removable as well

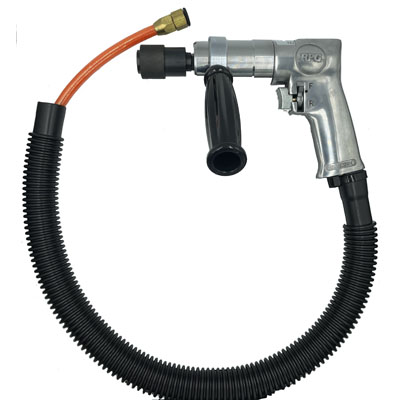

RPG AIR DRILL REVERSABLE W/QUICK CHUCK 1/2"

Ascot #	MFG #	Description	Free Speed	Length
158-10873	A873K	Low Speed Tire Buffer with Quick Change Chuck	2,800	1.75″
158-10871	A871K	High Speed Tire Buffer with Overhose kit	22,000	2.5″
158-11871	A871K-QC	High Speed Buffer Kit with Quick Change Chuck	22,000	1.75″
157-01035	A1035	1/2″REVERSIBLE AIR DRILL	500	7.5″
157-01038	SX223	3/8″ HEAVY DUTY AIR DRILL	2200	8″
157-88725	A88-7251	1/4″ AIR SCREWDRIVER	1800	7.7″

Air drills and buffers

RPG has durable, lightweight, buffing tools in high and low speeds for maximum material removal to provide high-quality finish. Likewise our reversable drills are heavy duty to keep up with your needs in the field.
